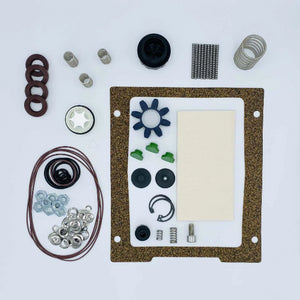

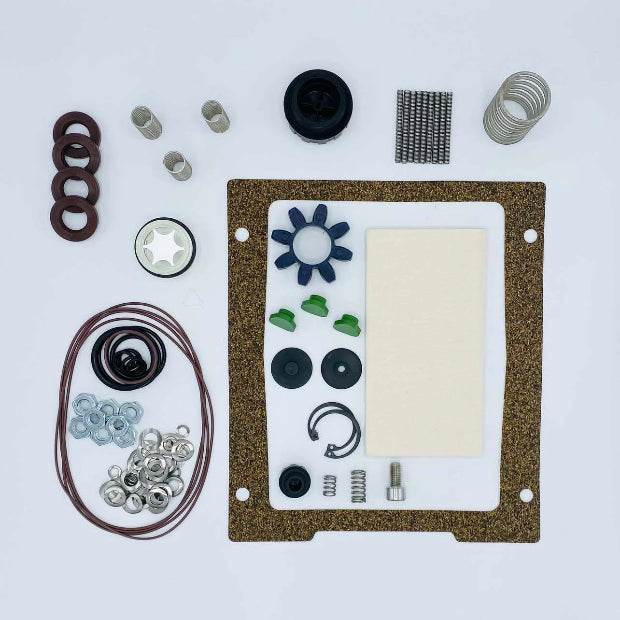

Alcatel 2063C 2063C1 Minor Repair Kit 54488
Part Number: 54488
$290.40
54488
DESCRIPTION | PART NO. | QTY |
Viton Valve | A53443 | 3 |
Exhaust Valve | A54134 | 1 |
Spring | A54145 | 1 |
Spring | A54149 | 1 |
Membrane | A54196 | 1 |
Clapper | A54224 | 1 |
Coupling | A54356 | 1 |
Oil Case Gasket | A54427 | 1 |
Felt Pad | A65059 | 1 |
C-Clip | A71188 | 2 |
Nut | A71217 | 17 |
Waved Washer M5 | A73453 | 3 |
Waved Washer M6 | A73454 | 21 |
Waved Washer M8 | A73455 | 2 |
Waved Washer M10 | A73456 | 25 |
Socket Head Screw | A75024 | 1 |
C-Clip | A76261C | 2 |
Viton Shaft Seal | A79101 | 4 |
O-Ring | A79134 | 2 |
O-Ring | A79136 | 1 |
O-Ring | A79137 | 4 |
O-Ring | A79327 | 1 |
O-Ring | A82007 | 4 |
O-Ring | A82013 | 2 |
O-Ring | A82015 | 1 |
O-Ring | A82022 | 1 |
O-Ring | A82025 | 2 |
O-Ring | A82027 | 2 |
O-Ring | A82056 | 1 |
O-Ring | A82067 | 3 |
Drain Plug | A82604 | 1 |
Fill Plug | A82925 | 1 |
Waved Washer | A84646 | 2 |
Vane Spring | A87942 | 9 |
Valve Spring | A87954 | 3 |
